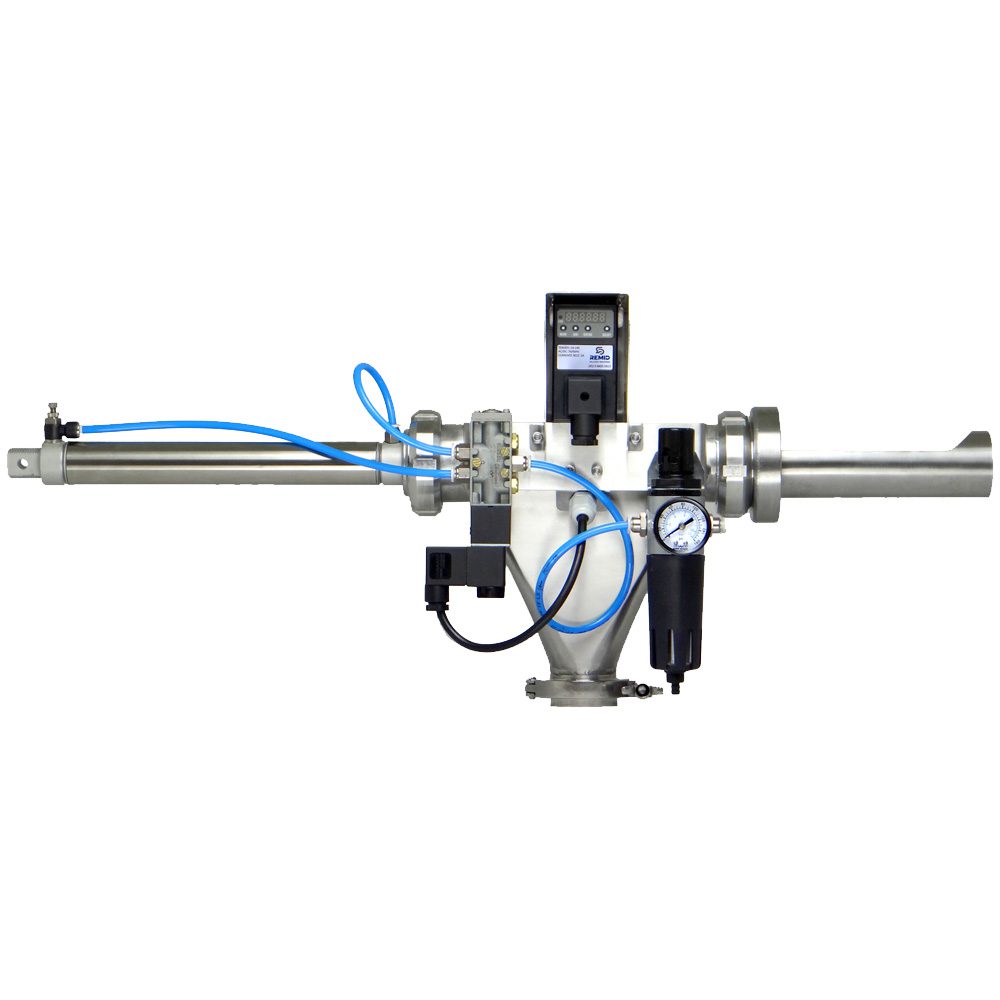

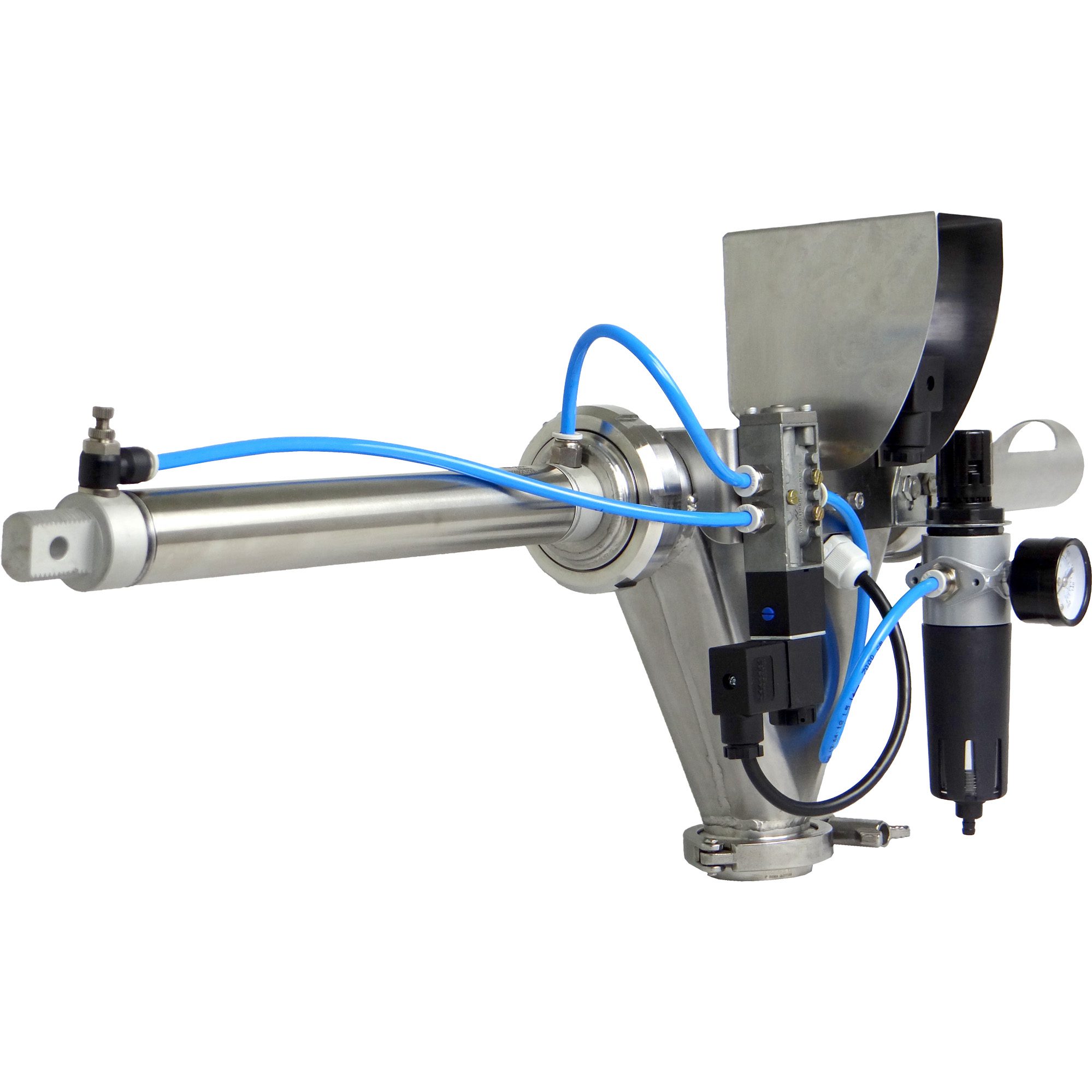

The CAP100G pneumatic sample collector is used to collect samples in tanks/silos or other means, at times determined by the operator.
It can collect grains, meals, powders, starches, and other dry products. Constructed of stainless steel, it has excellent durability and low maintenance needs. It is typically used with timers to collect samples periodically. This collector can be integrated with PLC.
Explore our line of collectors by clicking Here.
Specifications:
– Material: AISI 304 or 316L (check availability)
– Actuation: Electro-Pneumatic
– Available in 24 VDC or 220 VAC
– Working Pressure: 2 to 4 Kgf/cm²
– Collection Cup: 100 ml per cycle
– No Lubrication Required
– Equipped with pressure-regulating filter
– Application: Used to collect samples from equipment that store solids (powder, starch, feed, etc.)
– Weight: 7 Kg
