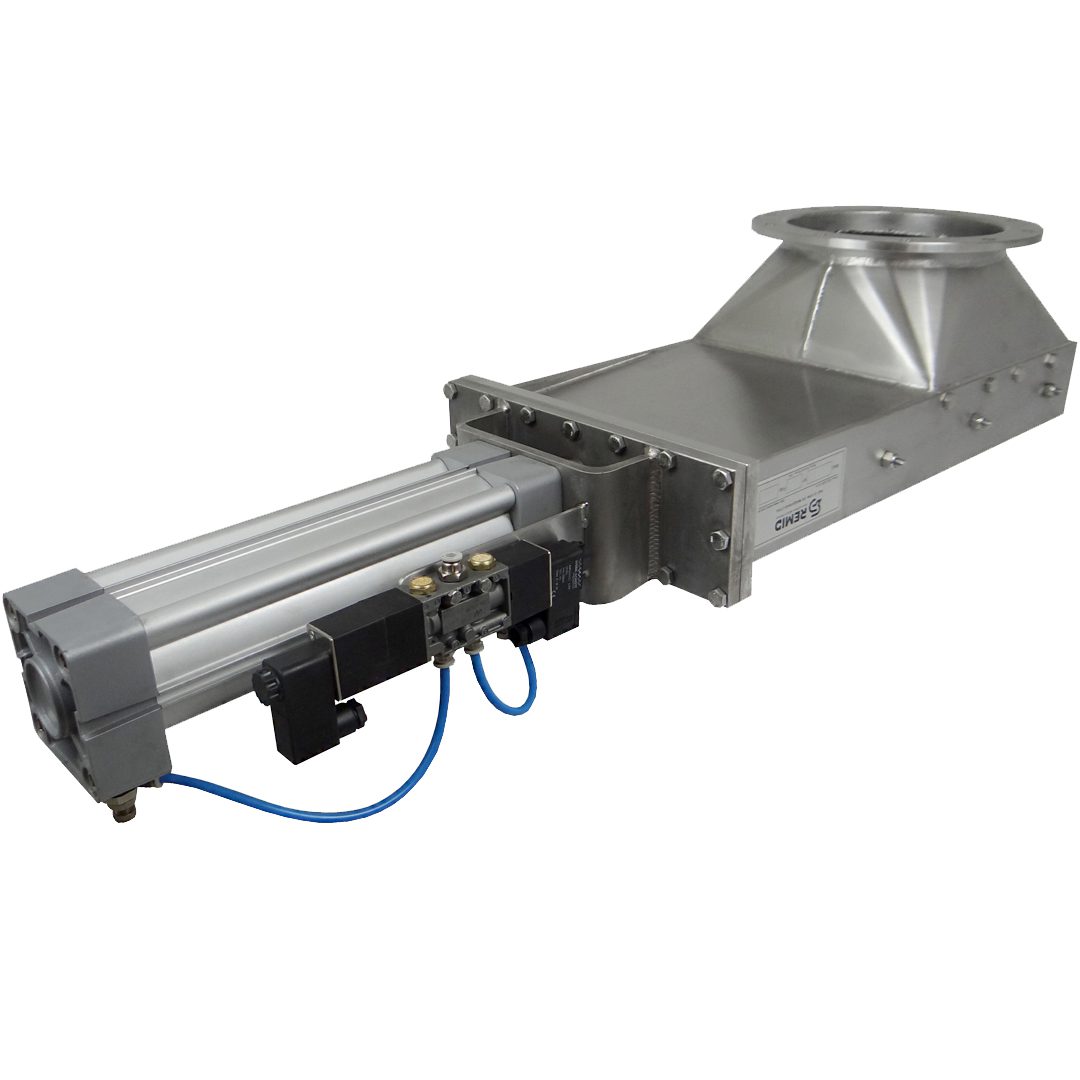

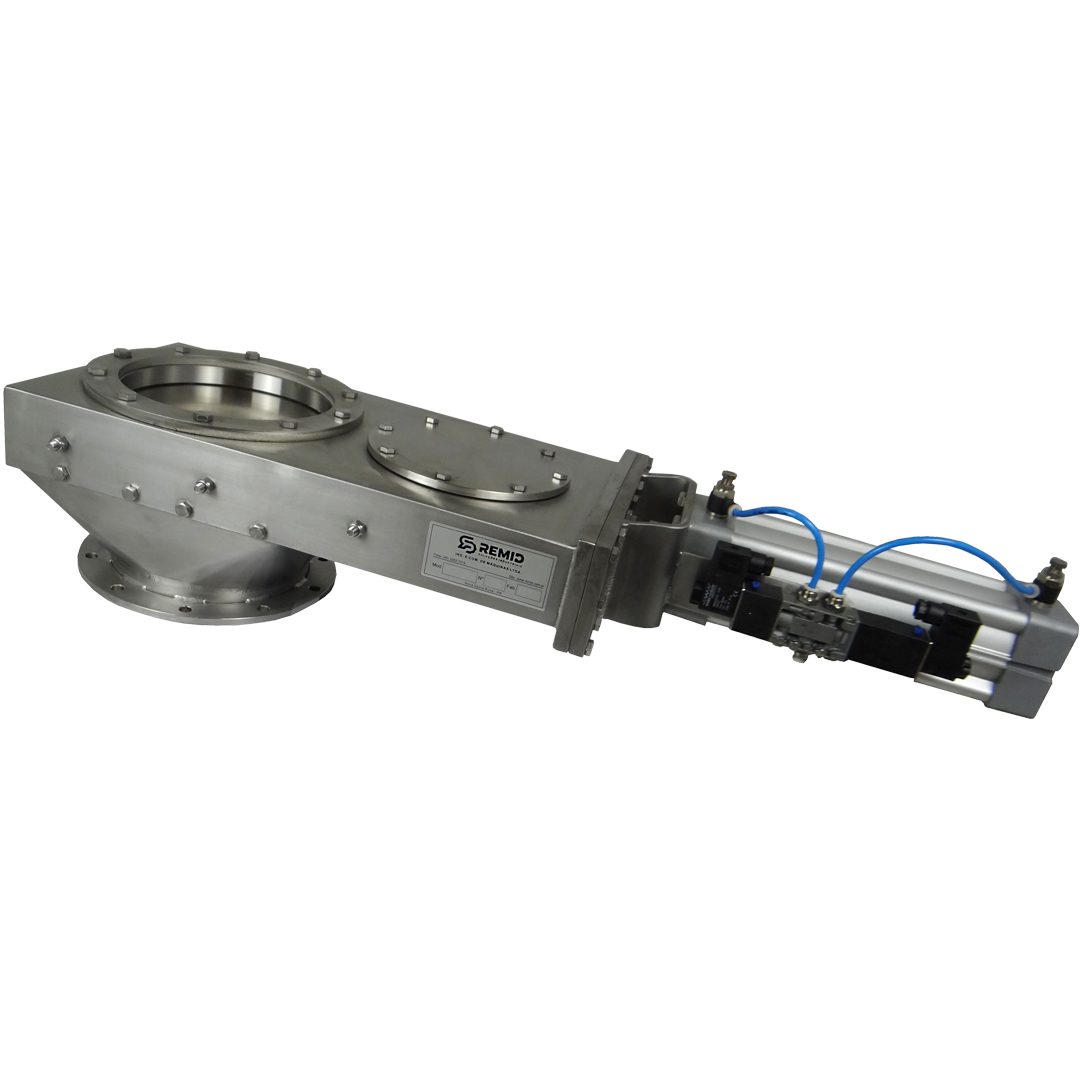

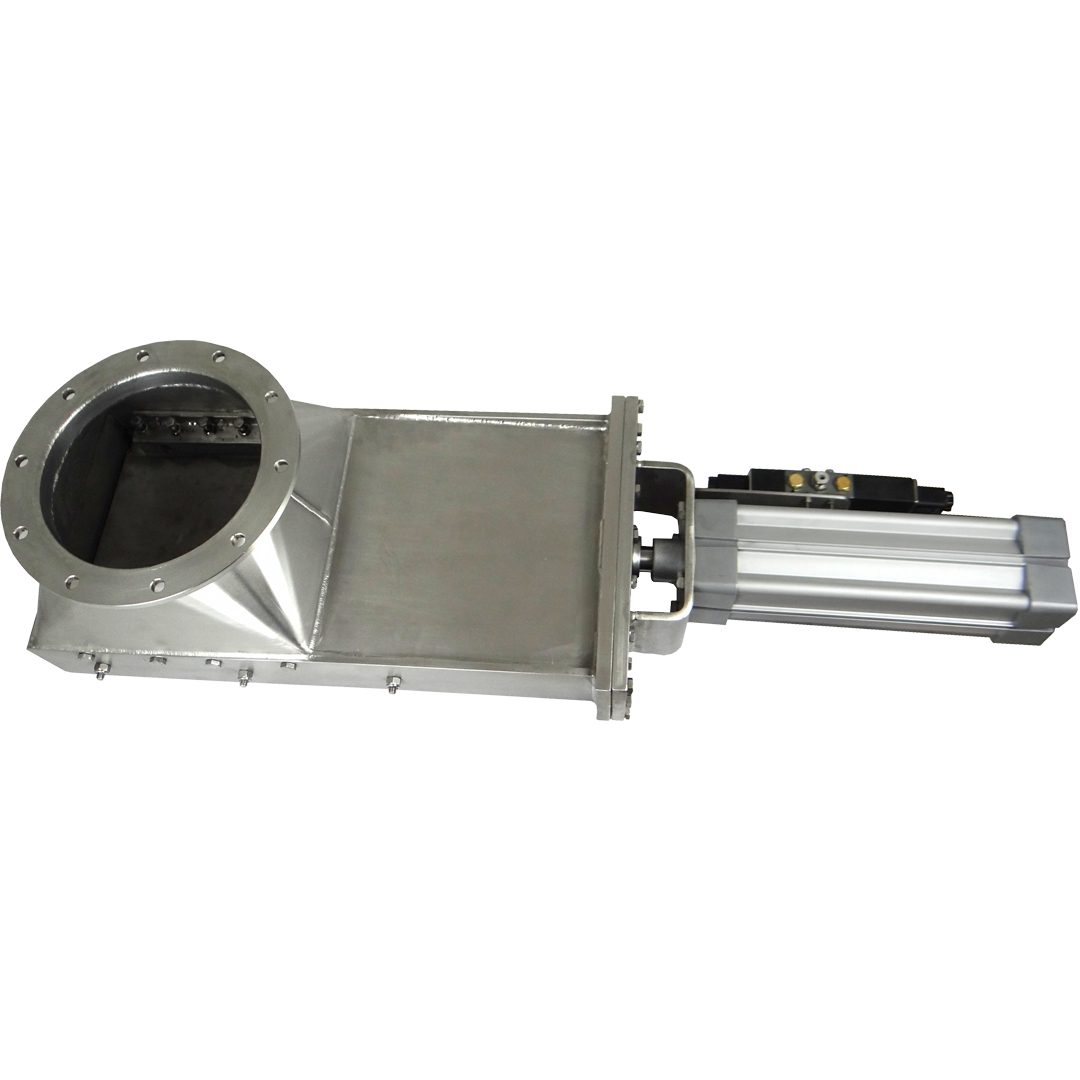

The Pneumatic Guillotine Valve controls the entry or discharge of products through a movable blade, applicable in tanks, silos, screws, among other applications.
Specifications:
– Constructed in stainless steel 304AISI
– The blade is constructed in stainless steel 304AISI
– Simple assembly of few parts / (Easy maintenance and installation)
– Sizes up to 1,000 mm x 1,000 mm
– Interchangeable actuators
– Useful dimensions are then: 536.7x175x295mm (length. height. width.)
– Full flow area Ø235mm
– Pneumatic cylinder Ø80x220mm
– Double solenoid valve actuator, 24VDC or 220VAC electropneumatic.
It has a robust construction and easy installation, with pneumatic actuation, and can be modified with the possibility of installing timers.
It has special guides on the blade that controls the outlet, thus providing speed in the process and also reducing any need for repair or subsequent cleaning in the long term. The Pneumatic Guillotine Valve is an important industrial tool that safely assists and efficiently speeds up material discharge.
This valve can be used with liquids, semisolids, and solids, such as pastes, viscous materials, among others.
Application in various industrial areas, including agri-food, extractive mineral, feed factories, starch extraction, cereal mills, sanitation, paper, cellulose, mining, sugar, alcohol, steel, petrochemical. Additionally, it is employed in the processes of storage and production of seeds, grains, powders, granules, in diversified food industry, as well as in gravel, minerals, among others.
