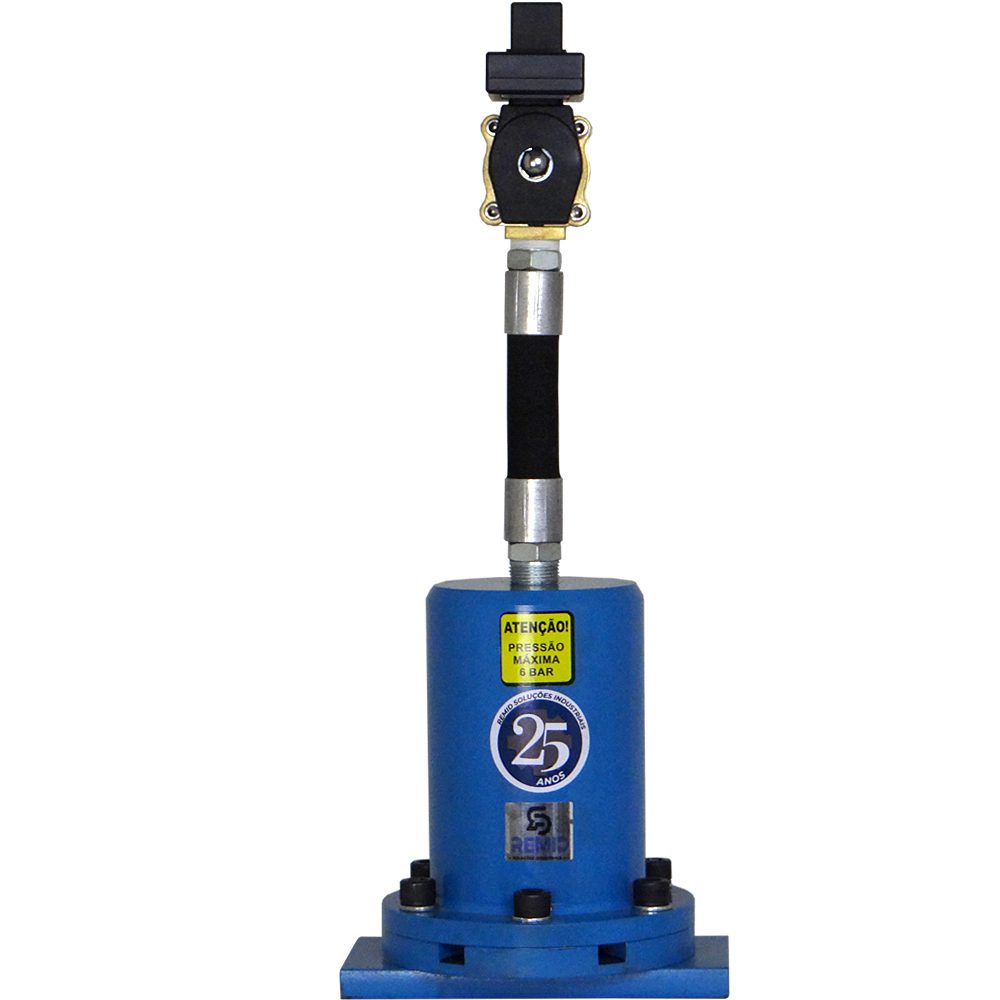

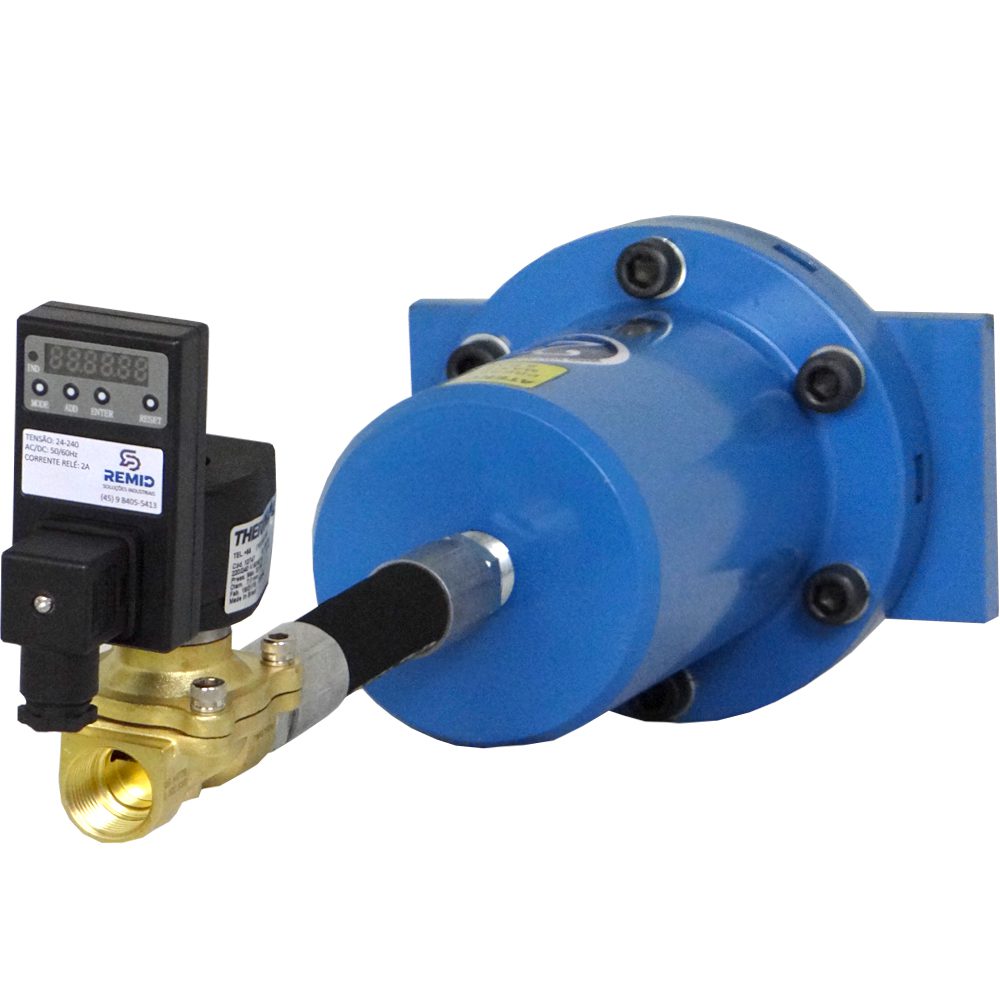

The Pneumatic Hammer MP20C is used to assist in the extraction or detachment of products/residues in silos through impact that causes vibration, shaking the equipment. Used when the product remains stuck to the wall, due to its characteristics or due to a manufacturing error in the silo design. Also known as a pneumatic beater.
Technical Information:
Material: Carbon Steel
Drive: Pneumatic
Available in 24 VDC or 220 VAC
Has a timer to adjust impact cycles
Working Pressure: 2 to 6 Kgf/cm².
No Lubrication Required, only when there is excessive water saturation in the line.
Air Inlet: 3/4″ Hose
Impact Force at 6 Kgf: 509 Kgf (4991 N)
Application: Used to assist in the extraction of products from tanks and silos.
Weight: 16 kilograms (Kg)
When they remain stuck to the walls, due to their characteristics or due to a manufacturing error in the silo design. Many times this service is done manually, so it can end up damaging the equipment. Therefore, the Pneumatic Hammer serves to avoid this type of manual service. This hammer has an adjustment for the intensity of impact according to the pre-configured pressure, with a maximum force of 509 Kgf at 6 Kgf/cm². Our pneumatic hammer replaces motor vibrators which cause cracks and detachment of material from the silo structures.

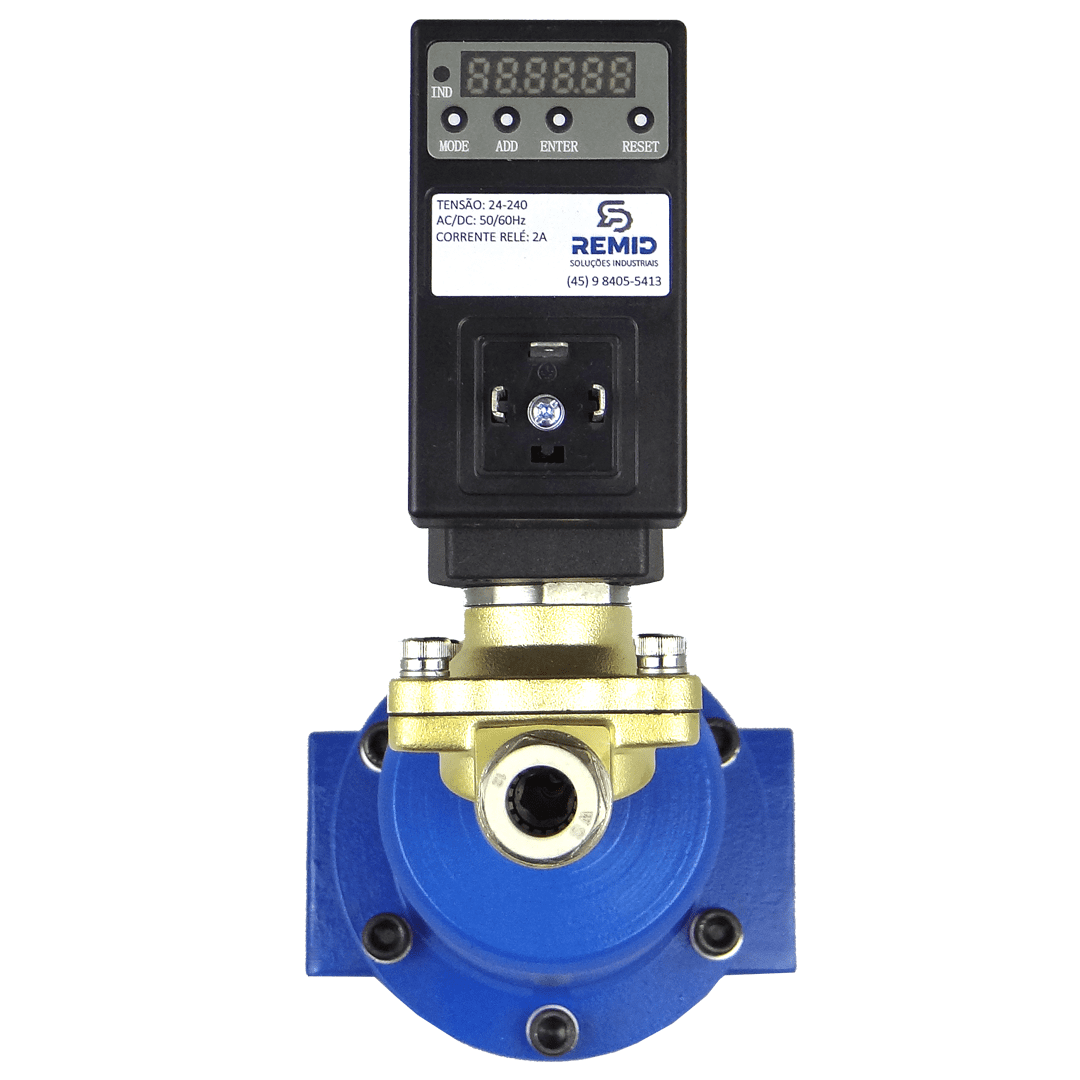

This set includes a timer with on-off times to choose the time the hammer will act, but it can also be programmed by PLCs
Check out our Pneumatic Hammers of various sizes by clicking Here.
