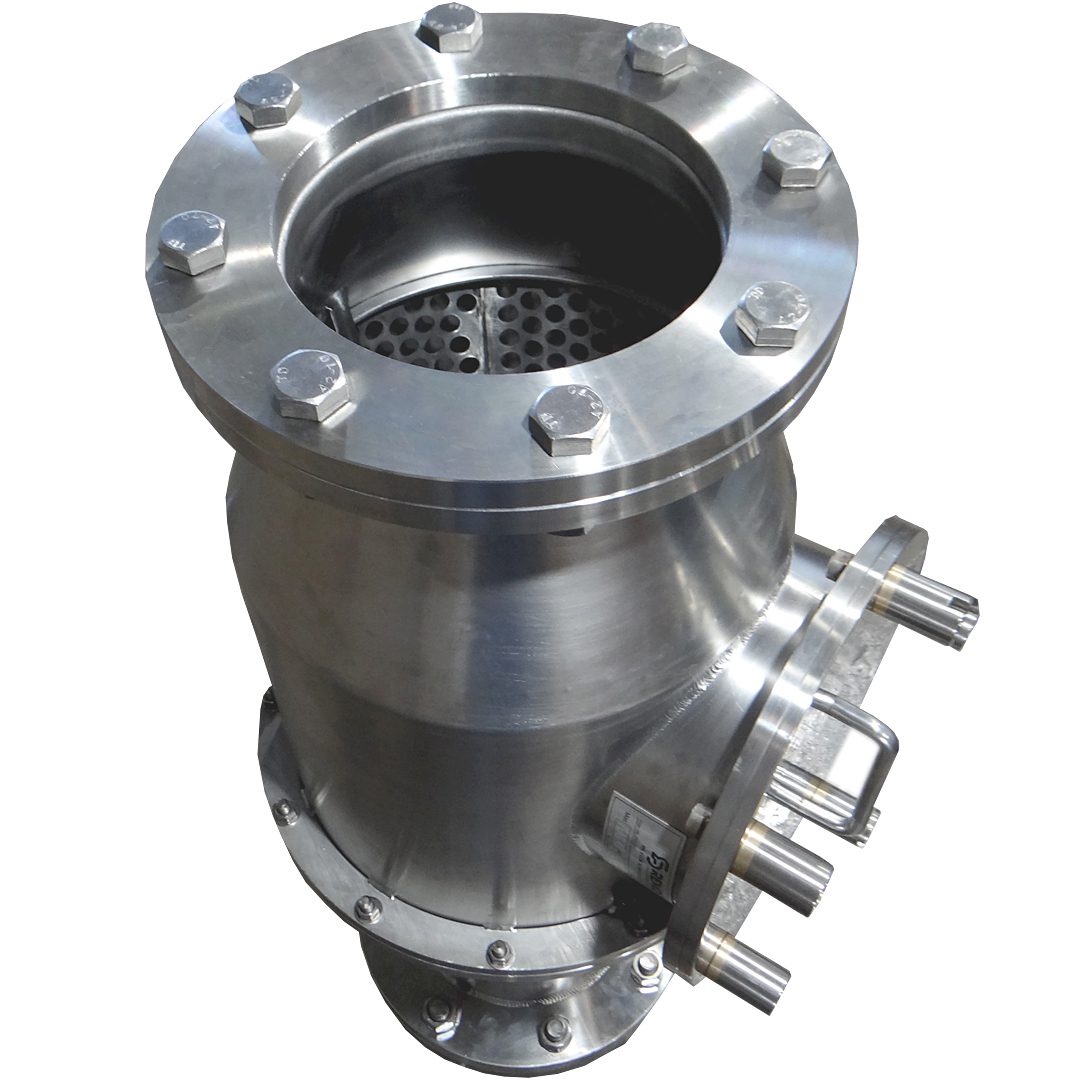

This industrial pneumatic air line filter serves to remove impurities and particles from the air, ensuring a clean and efficient airflow for pneumatic transport. This is essential to maintain operational efficiency and prolong the lifespan of equipment.
Description:
– Constructed in AISI304 stainless steel
– Dimensions: Ø350 x 870mm

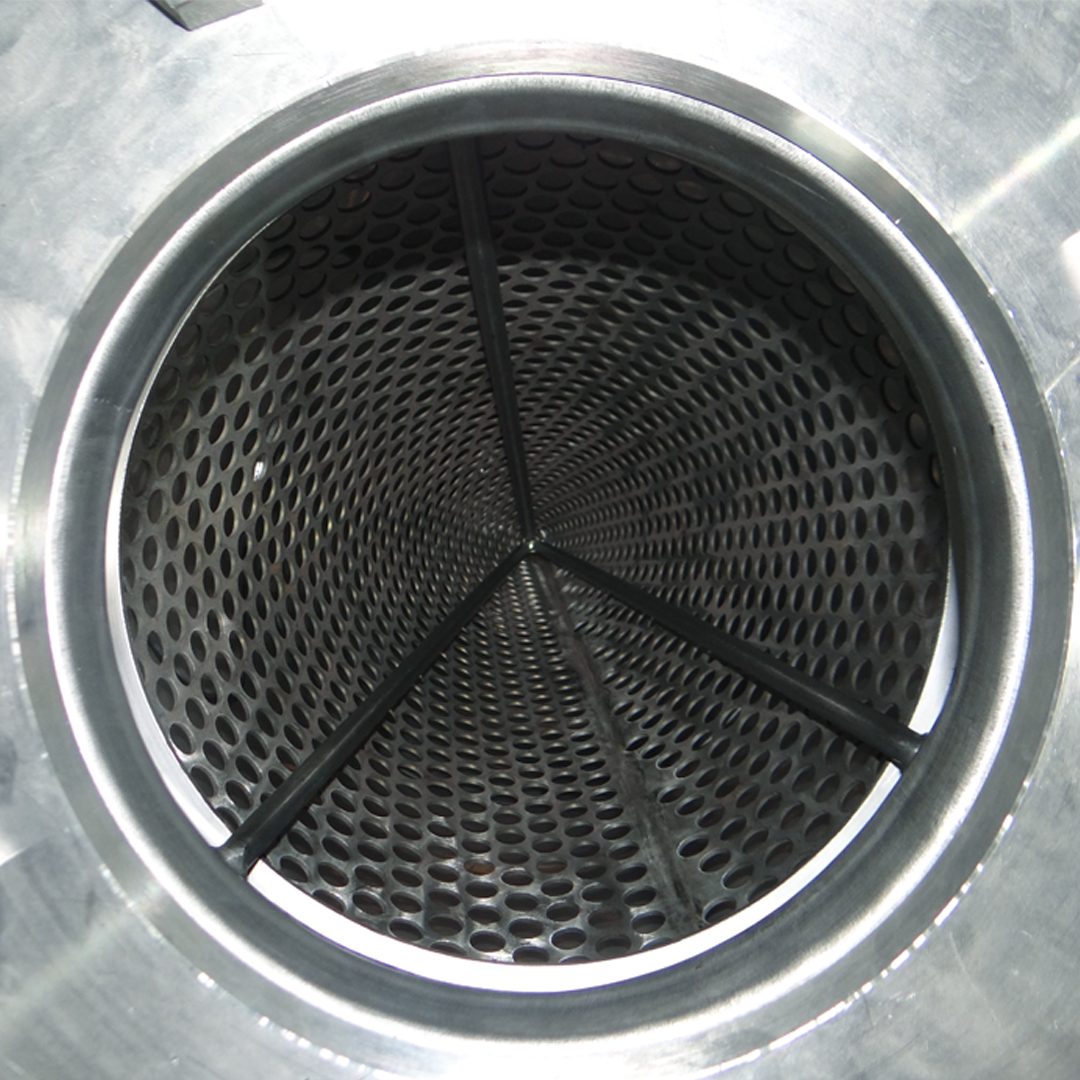

– 01 interchangeable cartridges with Ø14.3mm hole
– Cartridge passage area: Ø14.3mm hole 1,632cm² (0.163m²)

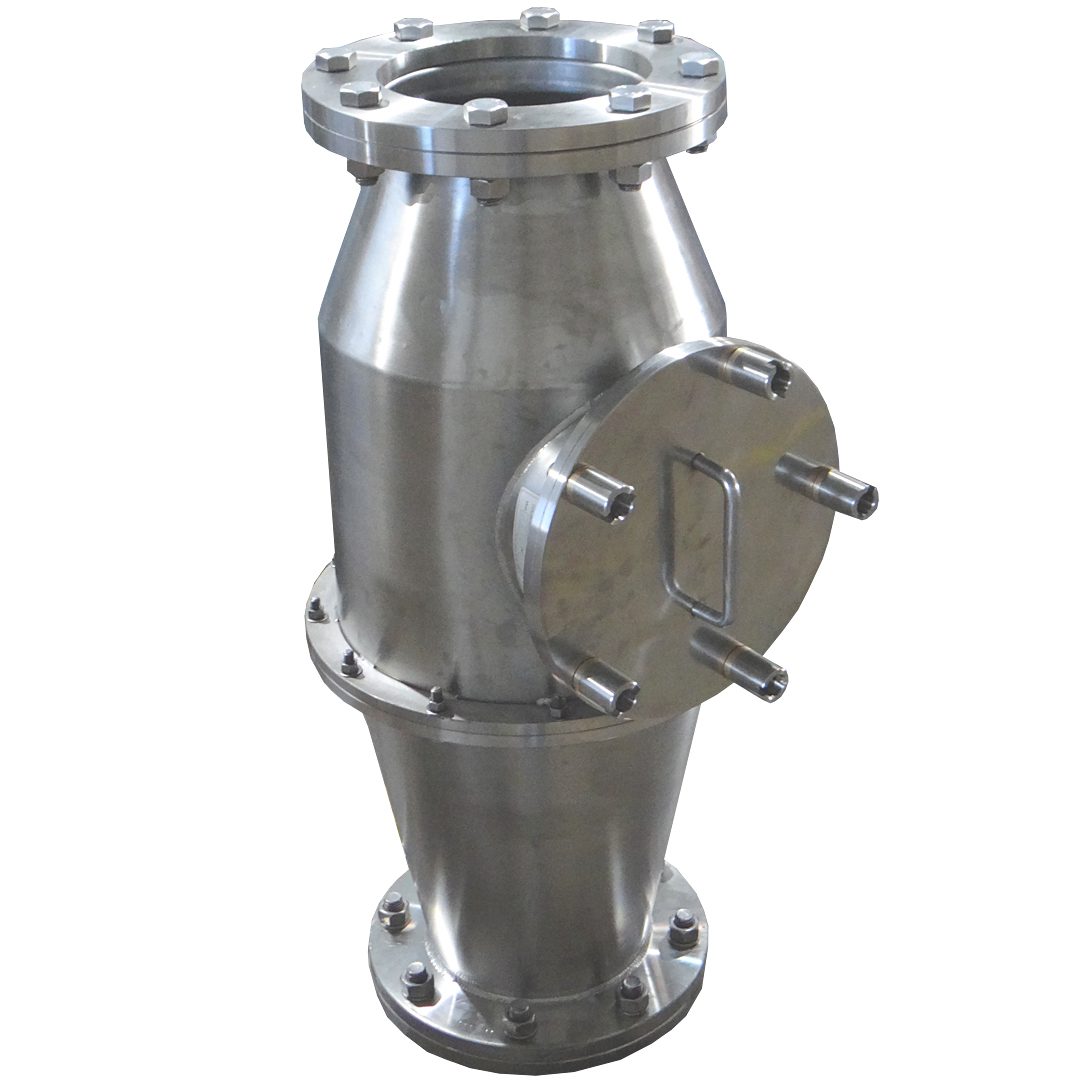

– Pipeline passage area: 314cm² Tub. Ø200mm > Flange connection 8” Ansi 16.5B 150lbs (with spare flange)
– 01 inspection window with manual lock
– Nominal pressure 0.918kgf/cm²
– Design pressure 1.3kgf/cm²
– Test pressure 1.7kgf/cm²
– Flange seals with non-toxic silicone O-rings
At Remid, we specialize in industrial projects and large-scale modifications, offering robust and innovative solutions for your industry. Contact us to discuss your specific needs and drive the success of your operation. (Click here to contact us)
