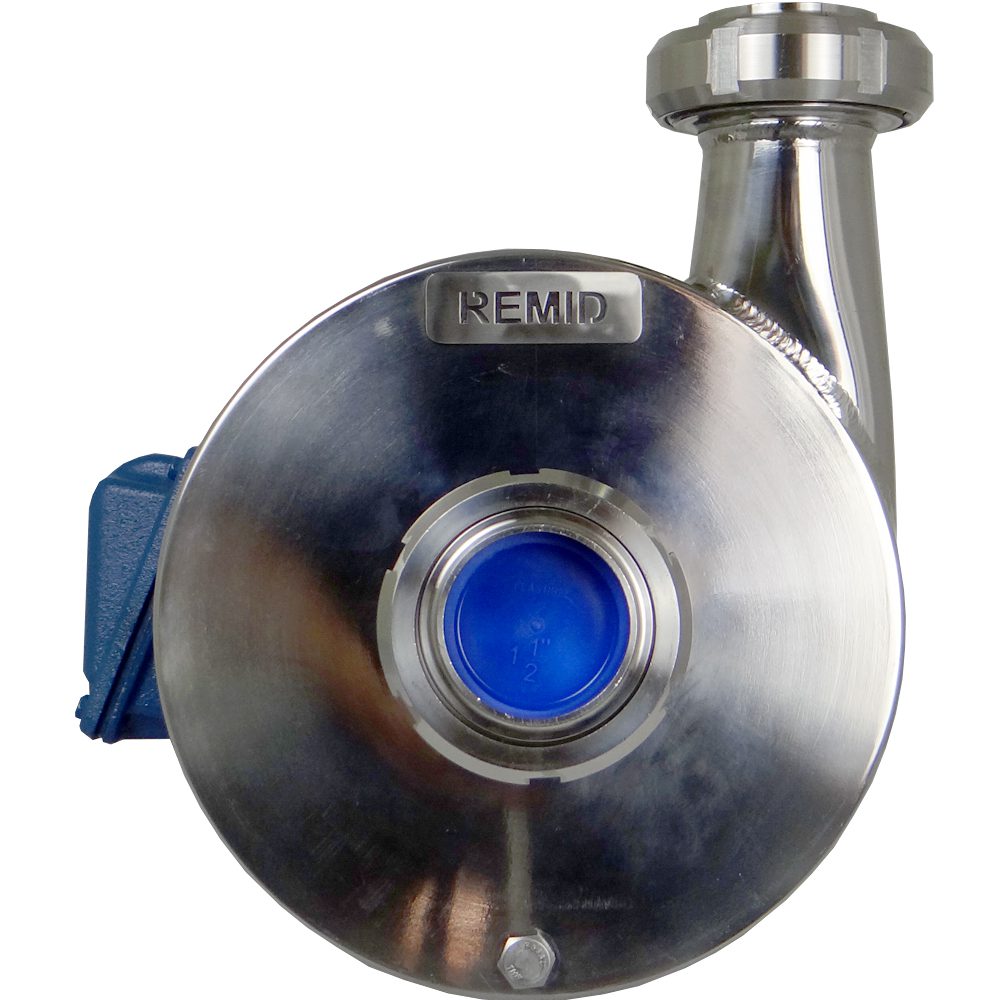

The centrifugal pump can be used in various places, featuring a robust and durable construction that allows it to operate for extended periods even when exposed to harsh conditions.
Specifications:
– Material: AISI 304
– Power: 3 hp (2.2 KW) II poles
– Voltage: 220/380/440 Volts
– Rotor: Ø 145mm
– Suction: 2” BSP
– Discharge: 1.1/4” BSP
– Drain: 1/2” BSP
– Maximum Pressure: 34 mca (3.4Kgf/cm²)
– Maximum Flow: 30 m³/h
– Weight: 30 Kg
It has a wide application range as it can work with both high and low flow rates, as well as with corrosive, chemical, or low viscosity materials.
The 3 hp Centrifugal Pump is used for the transportation of starches, water, milk, acids, among others. The pump boasts excellent quality and robustness.
Widely used in rural, industrial, and residential areas, for any situation where liquid transportation is needed. They can also be used in irrigation, well pumping, hospital and pharmaceutical sectors, sanitation, residential buildings and condominiums, among others. Also utilized in the food sector, such as starch factories, starch modification, cereal plants, among others. A centrifugal pump is composed of a rotor, working like a turbine, where the liquid flows continuously, pushed by the rotor vanes. REMID pumps are calculated, developed, and manufactured to offer maximum performance, featuring high-efficiency motors, reducing energy consumption. Thus, they are manufactured and coupled with WEG Motors. They have easy maintenance and installation.
At Remid, we specialize in industrial projects and large-scale modifications, offering robust and innovative solutions for your industry. Contact us to discuss your specific needs and drive the success of your operation. (contact us by clicking here)
FOLLOW REMID ON SOCIAL MEDIA – FACEBOOK & INSTAGRAM.
NOTE: Prices are subject to adjustments due to customizations or external factors, such as variations in taxes. Some images are illustrative; final versions vary to meet individual specifications, ensuring quality and maximum efficiency.
